    Depending on the type of product to be shipped,
    There are different containers that can vary in dimensions, structure, material, etc.

    40’ DRY VAN

    SPECIFICATIONS
    SPECIFICATIONS

    20’ DRY VAN

    SPECIFICATIONS
    SPECIFICATIONS

    20’ FLAT RACK

    SPECIFICATIONS
    SPECIFICATIONS

    40’ FLAT RACK

    SPECIFICATIONS
    SPECIFICATIONS

    20’ CAGE

    SPECIFICATIONS
    SPECIFICATIONS

    20’ OPEN TOP

    SPECIFICATIONS
    SPECIFICATIONS
    10. 40' HC:
    Measures

    Internal  12,032 large | 2,352 width | 2,692 height mt.

    Capacity

    Max load 29, 870 kg.
    Volume 76,50 m3.

    *These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    40’ CAGE

    SPECIFICATIONS
    SPECIFICATIONS

    20’ REEFER

    SPECIFICATIONS
    SPECIFICATIONS

    40’ REEFER

    SPECIFICATIONS
    SPECIFICATIONS

    20’ TANK CONTAINER

    SPECIFICATIONS
    SPECIFICATIONS

    20’ BULK CONTAINER

    SPECIFICATIONS
    SPECIFICATIONS

    45’ HC

    SPECIFICATIONS
    SPECIFICATIONS
    Pídenos una cotización
    Pídenos una cotización
    Instagram Facebook-f Linkedin
    Facebook Instagram Linkedin
    • 1. 20' DRY VAN:
    Measures

    Internal 5,900 large | 2,352 width| 2,395 height mt.

    Capacity

    Max Load 30, 130kg.
    Volume 33,20 m3.



    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.
    The capacities are for guidance, if you have any questions, please inquire with our team.

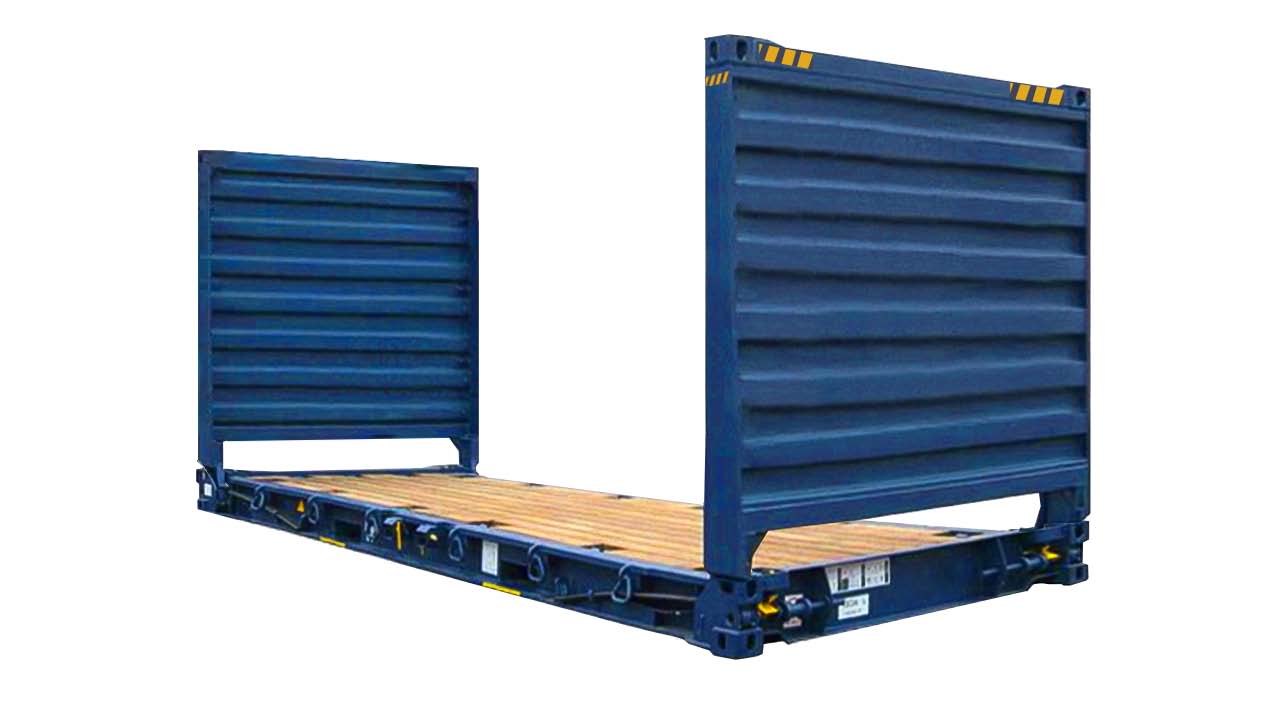

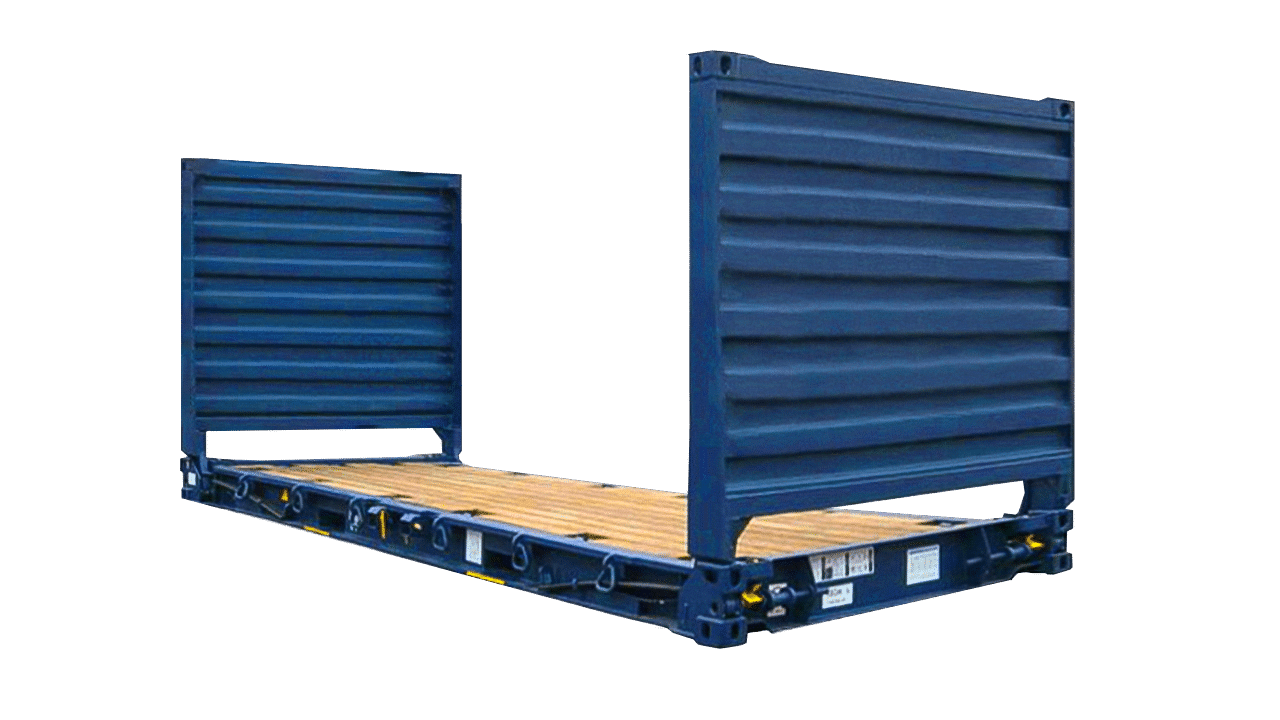

    2. 20' FLAT RACK:
    Measures

    Internal 5,950 large | 2,226 height mt.

    Capacity

    Max Load 27, 110 kg.
    Volume 32, 30 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

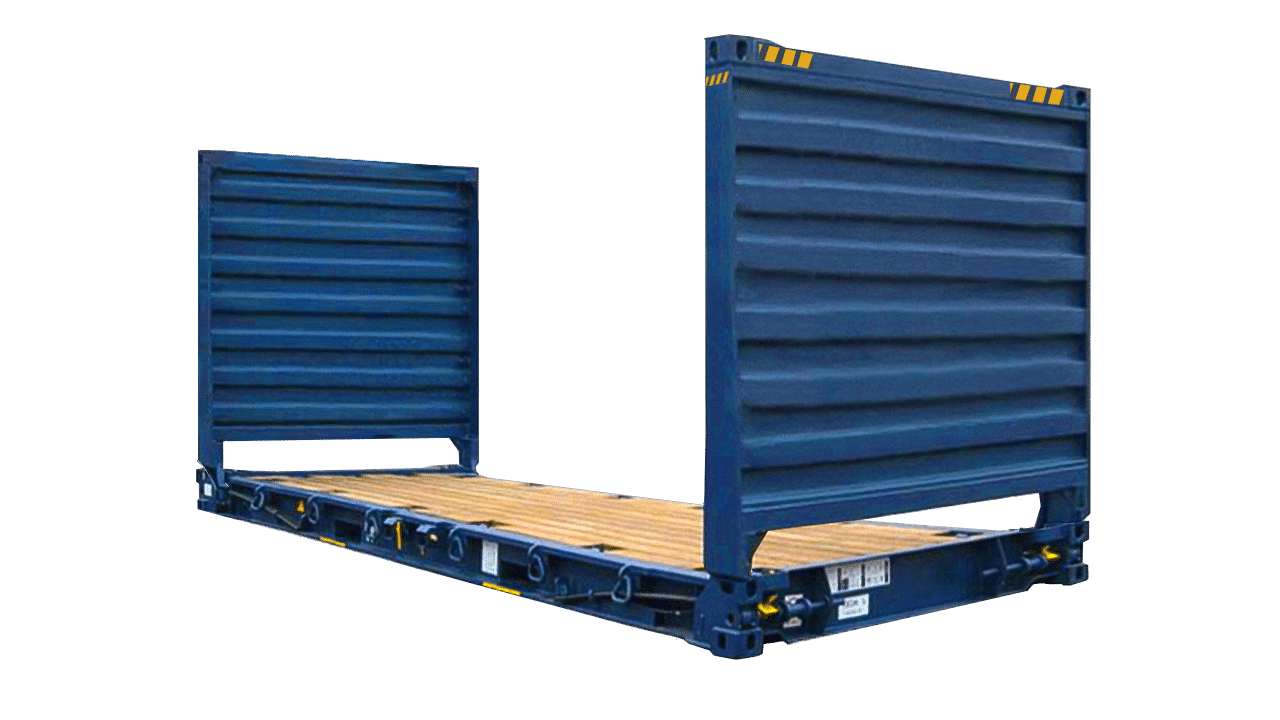

    9. 40' FLAT RACK:
    Measures

    Internal 12,064 large | 2,438 width | 1,953 height mt.

    Capaciy

    Max Load 29, 870 kg.
    Volume 57,41 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

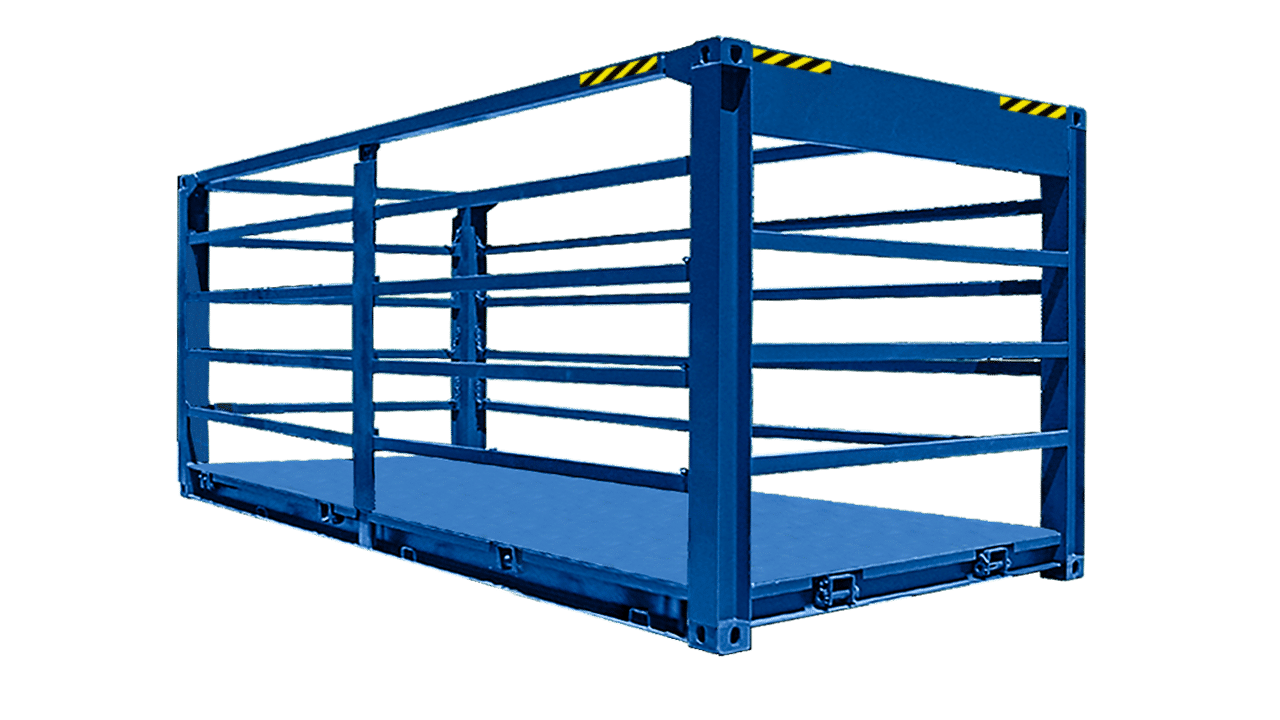

    3. 20' CAGE:
    Measures

    Internal  5,943 large | 2,318 width| 2,275 height mt.

    Capacity

    Max Load 21, 610 kg.
    Volume 21, 40 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

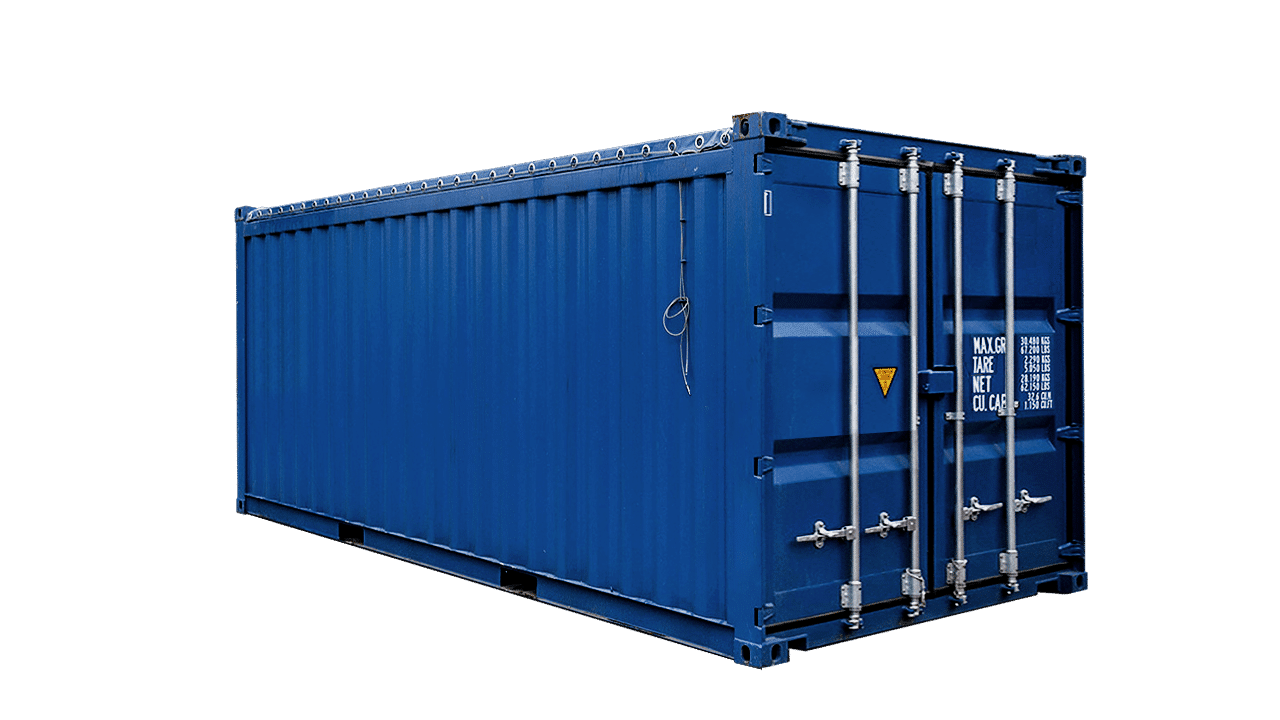

    4. 20' OPEN TOP:
    Measures

    Internal 5,940 large | 2,352 width | 2,360 height mt.

    Capacity

    Max Load 24, 000 kg.
    Volume 33, 20 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

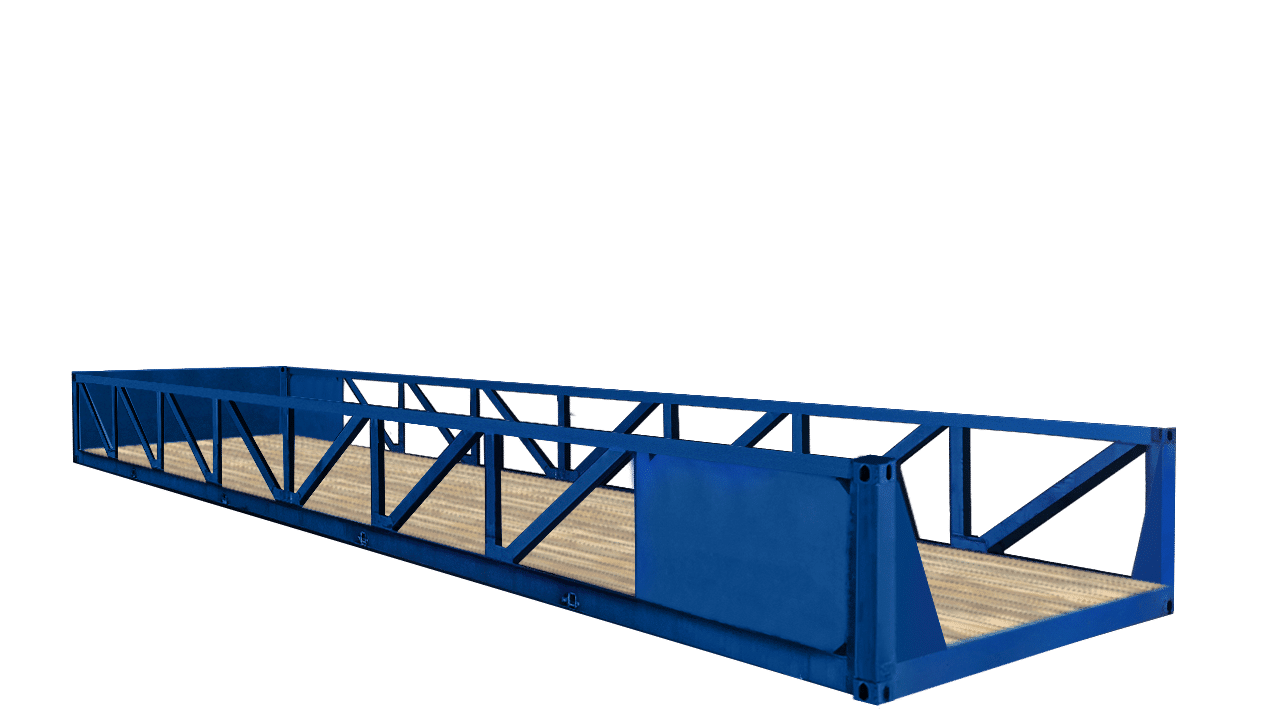

    11. 40' CAGE:
    Measures

    Internal  12,086 large | 2,320 width | 1,120 / 2,275 height mt.

    Capacity

    Max Load 26, 760 kg.
    Volume 31,40 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    11. 40' JAULA:
    Medidas

    Interior (12,086 largo | 2,320 ancho| 1,120 / 2,275 alto) mt.

    Capacidad

    Carga Máx 26, 760 kg.
    Volumen 31,40 m3.

    * Estas medidas y especificaciones son sólo un ejemplo de los contenedores, estos pueden sufrir alguna variación según el fabricante. Las capacidades son orientativas, si tiene alguna duda, por favor consulte a nuestro equipo.

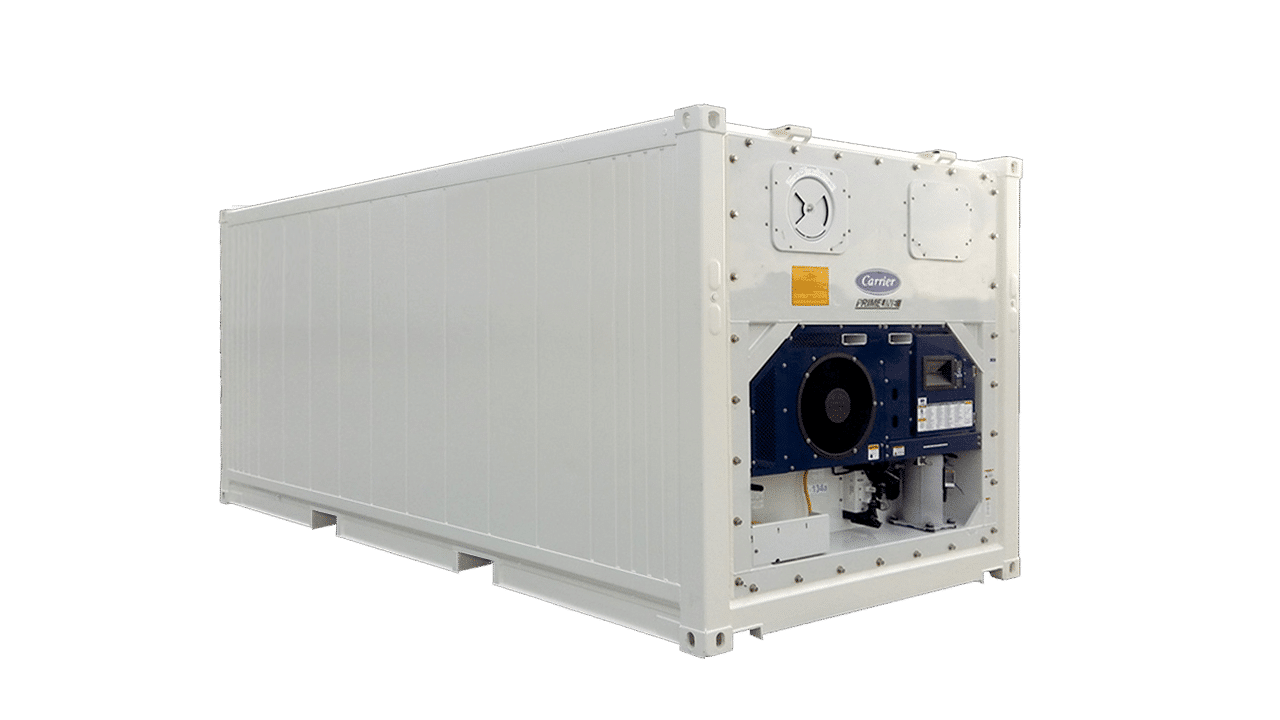

    5. 20' REFEER:
    Measures

    Internal  5,456 large | 2,294 width | 2,275 height mt.

    Capacity

    Max Load 27, 540 kg.
    Volume 28,50 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    12. 40' REFEER:
    Measures

    Internal  11,590 large | 2,294 width | 2,557 height mt.

    Capacity

    Carga Máx 30, 420 kg.
    Volumen 67,90 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    6. 20' TANK CONTAINER:
    Measures

    Internal  7,820 large | 2,550 width | 2,670 height mt.

    Capacity

    Max Load 27, 540 kg.
    Volume 21,000 – 26,000 ltr.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    7. 20' BULK CONTAINER:
    Measures

    Internal 5,456 large | 2,294 width | 2,275 height mt.

    Capacity

    Max Load 27, 540 kg.
    Volume 28,50 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.

    13. 45' HC:
    Measures

    Internal  13,532 large | 2,426 width | 2,694 height mt.

    Capacity

    Max Load 29, 350 kg.
    Volume 88,40 m3.

    * These measurements and specifications are only an example of the containers, these may suffer some variation depending on the manufacturer.

    The capacities are for guidance, if you have any questions, please inquire with our team.
